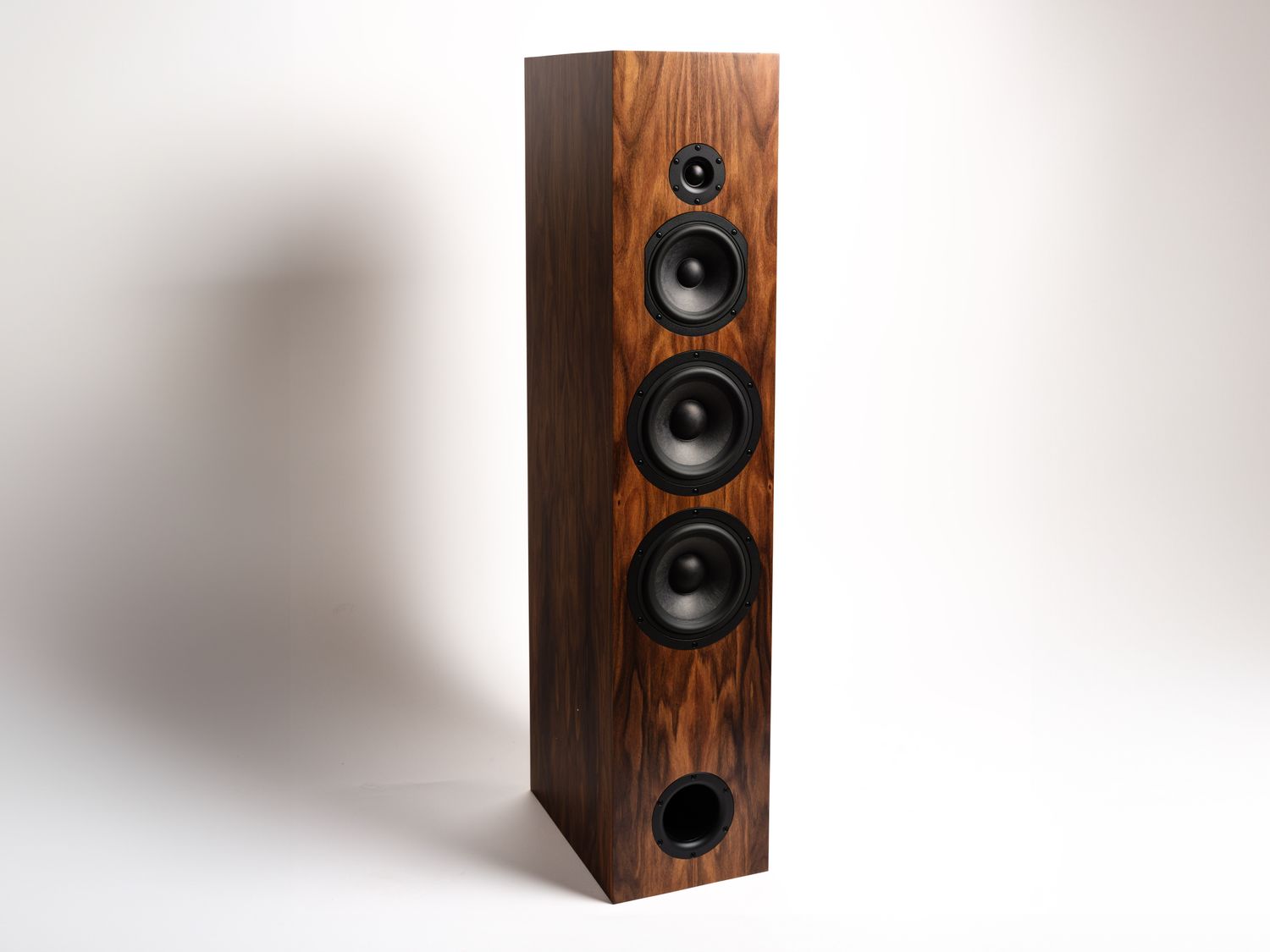

CSS Criton 3TD-X Kit (Pair)

Introducing our all new, 3-way towers using our top of the line LD25X tweeter, an all new LDW6 mid woofer, and a pair of LDW7 woofers. We did something special with this design to create a very even directivity without the use of a waveguide. By not using the waveguide, it creates a wider dispersion speaker which is only down about 10 dB at 10 kHz.

Features:

• Ultra low distortion drivers
• High output capability
• Deep and clean bass response
• Extremely broad dispersion with minimal deviations in the directivity index
• Custom aluminum flanged 3" ports

The crossover for this kit has 3 options:

1. Standard Crossover, which has CSS Stealth Cap metalized polypropylene capacitors, steel laminate inductors in the bass section, and sand cast resistors.
2. Our Superior Crossover with Jantzen Superior Z-Caps, which has Jantzen Superior Z-Caps on the tweeter, CSS Stealth Cap metalized polypropylene capacitors on the woofer and midrange, air-core inductors throughout, and Jantzen Superes resistors.
3. Our Superior Crossover with Jantzen Amber Z-Caps, which uses Jantzen Amber Z-Caps with a pure copper foil in the tweeter section, CSS Stealth Cap metalized polypropylene capacitors on the woofer and midrange, air-core inductors throughout, and Jantzen Superes resistors.

• Frequency Response: 32 Hz to 20 kHz +/- 3 dB

• In-Room Response: 20 Hz to 20 kHz
• Sensitivity: 87.8 dB

• Nominal Impedance: 4 Ohm

• Crossover: 3-way with crossovers at 300 Hz / 2700 Hz

• Suggested Amplifier Power: 30 watts or more

• Dimensions per speaker: 41.5" H x 8.5" W x 13.5" D

• Weight per speaker (assembled) 70 lbs

Positive-Feedback: https://positive-feedback.com/reviews/hardware-reviews/criton-3td-x-loudspeakers/
